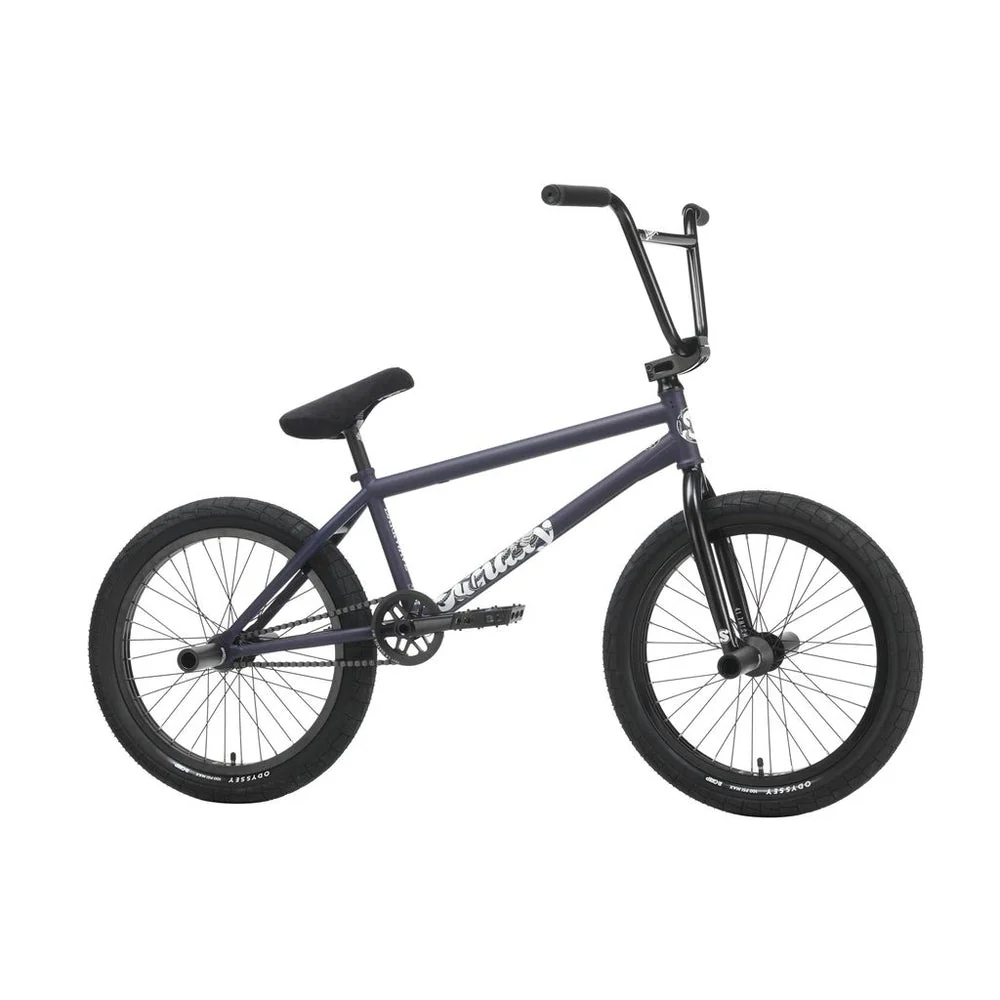

Sunday Darkwave - Broc Raiford Authentic 20" Complete BMX Bike
Sunday Darkwave - Broc Raiford Authentic 20" Complete BMX Bike

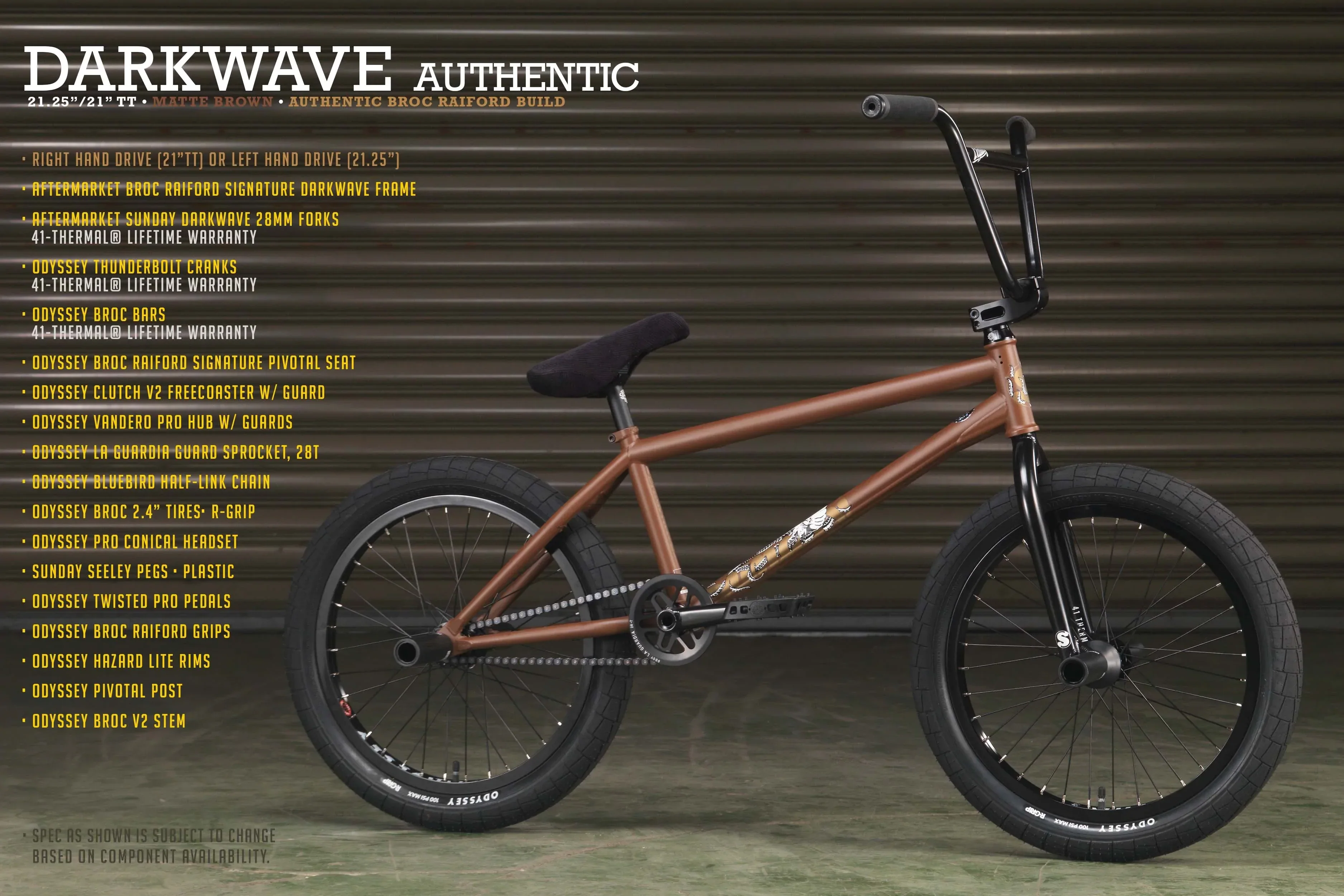

This is the Sunday Broc Raiford Darkwave Authentic.
This model is 100% aftermarket parts and exactly what Broc rides, all the way down to his signature Odyssey product, left hand drive setup and top tube size.
Key Features
- 100% Aftermarket Parts Kit
- Lifetime Warranty on Bars, Forks, and Cranks
- Sunday Darkwave Frame
- Sunday Darkwave 41-Thermal Forks
- Odyssey BROC 41-Thermal Bars
- Odyssey Thunderbolt 41-Thermal Cranks
- Odyssey Broc v2 Stem
- Odyssey Clutch v2 Freecoaster
- Odyssey Vandero Pro Front Hub
- Odyssey Hazard Lite Rims
- Odyssey Broc Tires with R-Grip
Specifications

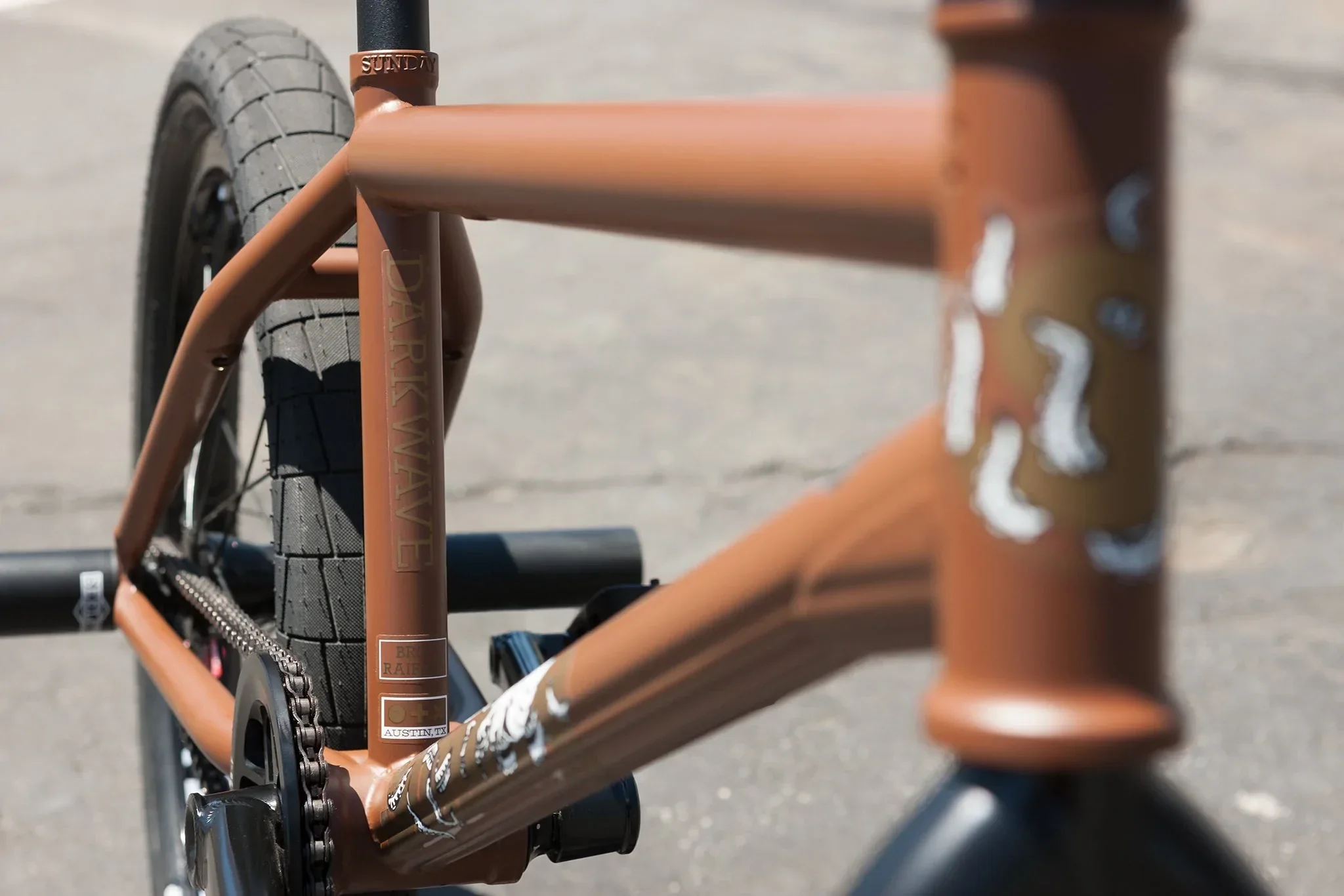

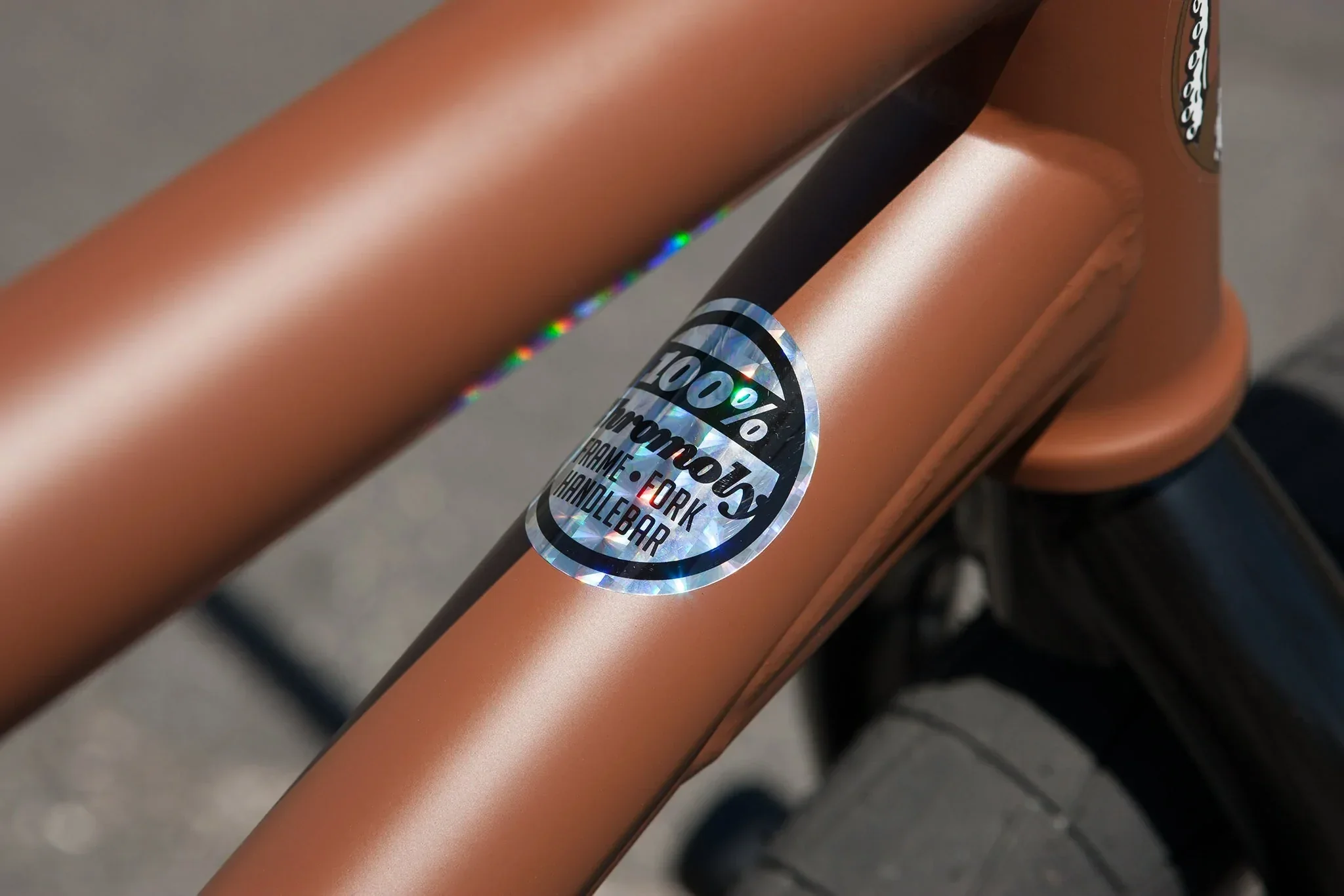

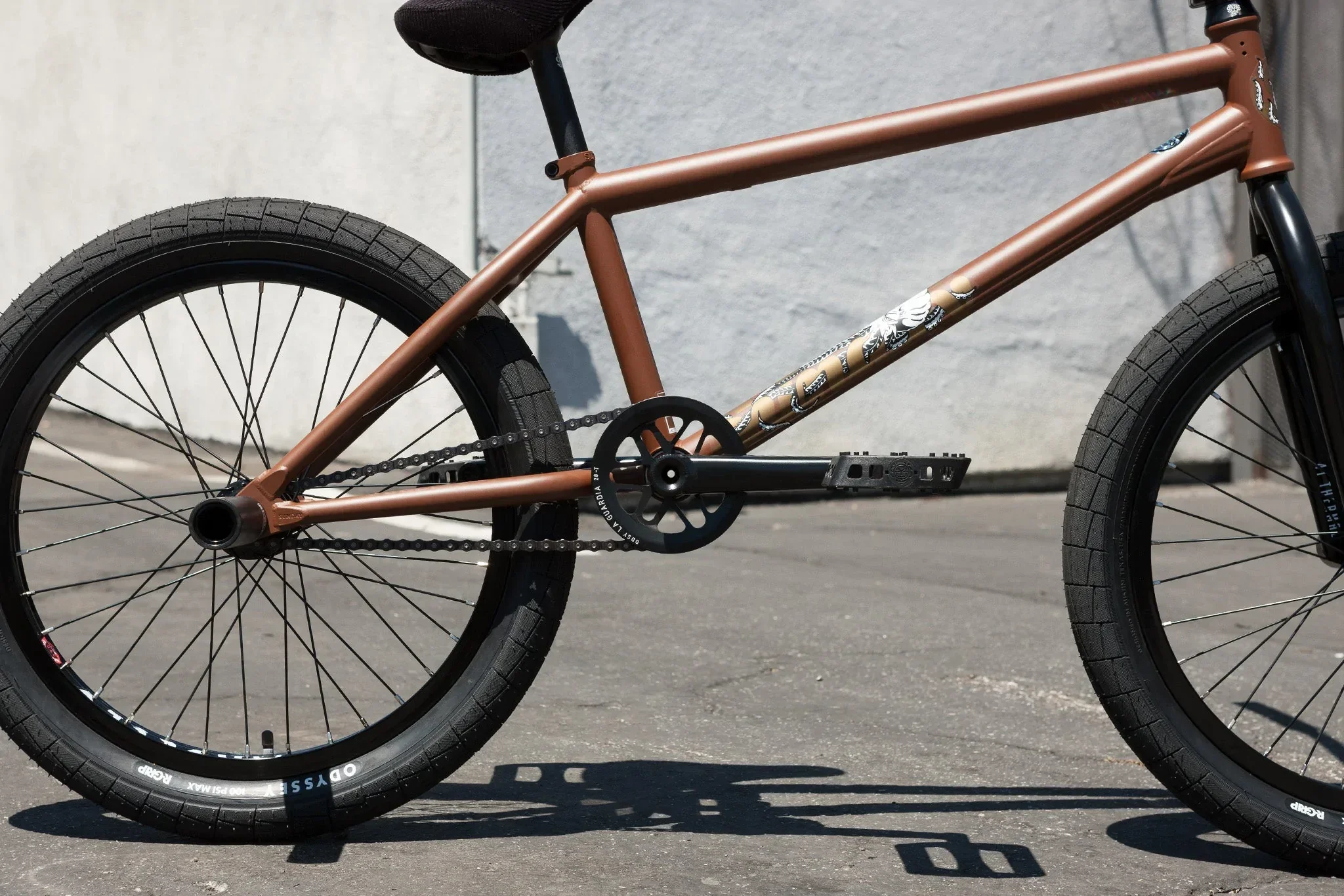

Frame: Sunday Darkwave, 21" (RHD) or 21.25" (LHD), 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
Fork: Sunday Darkwave, 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset

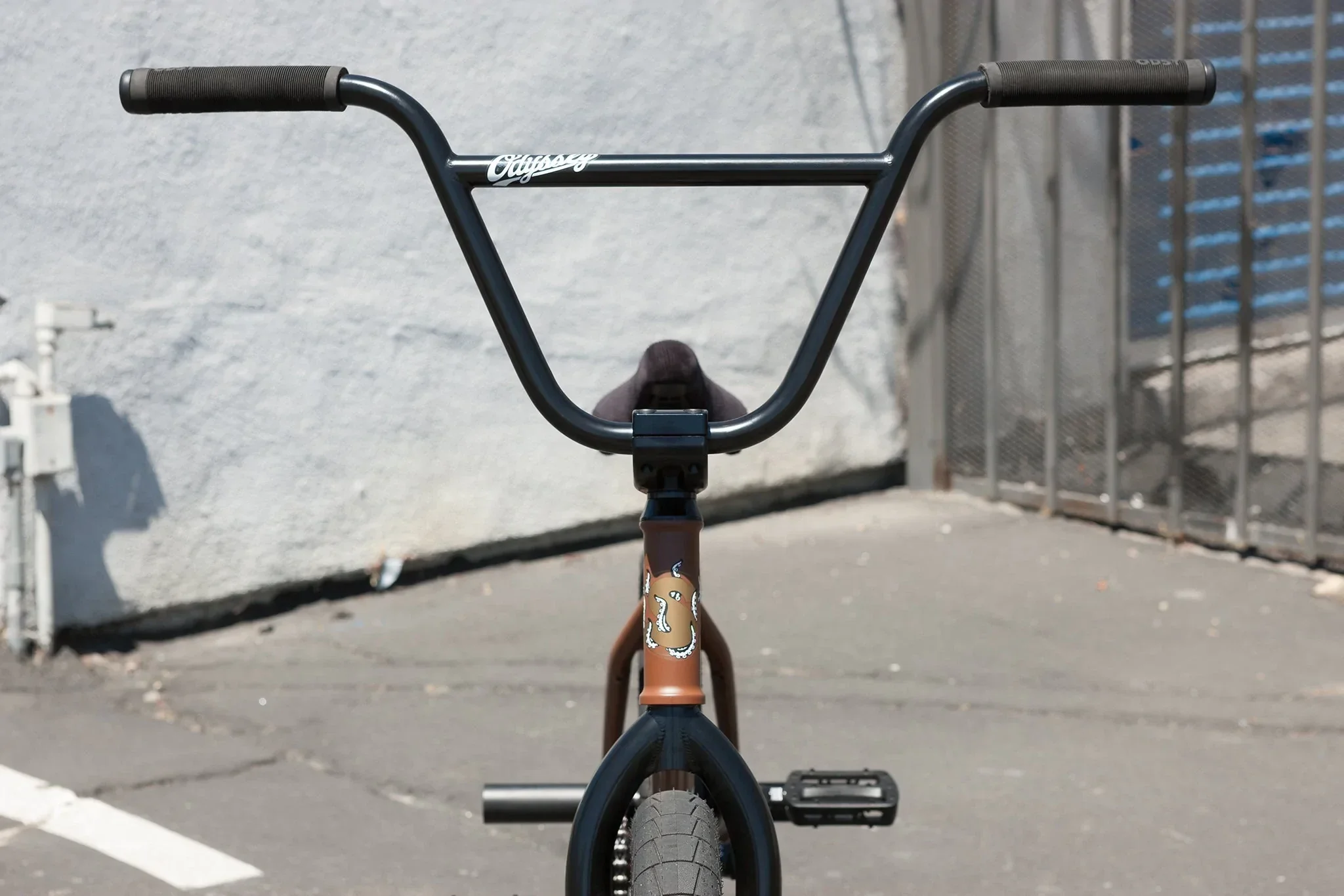

Handlebar: Odyssey BROC Bar, 41-Thermal, aftermarket bar

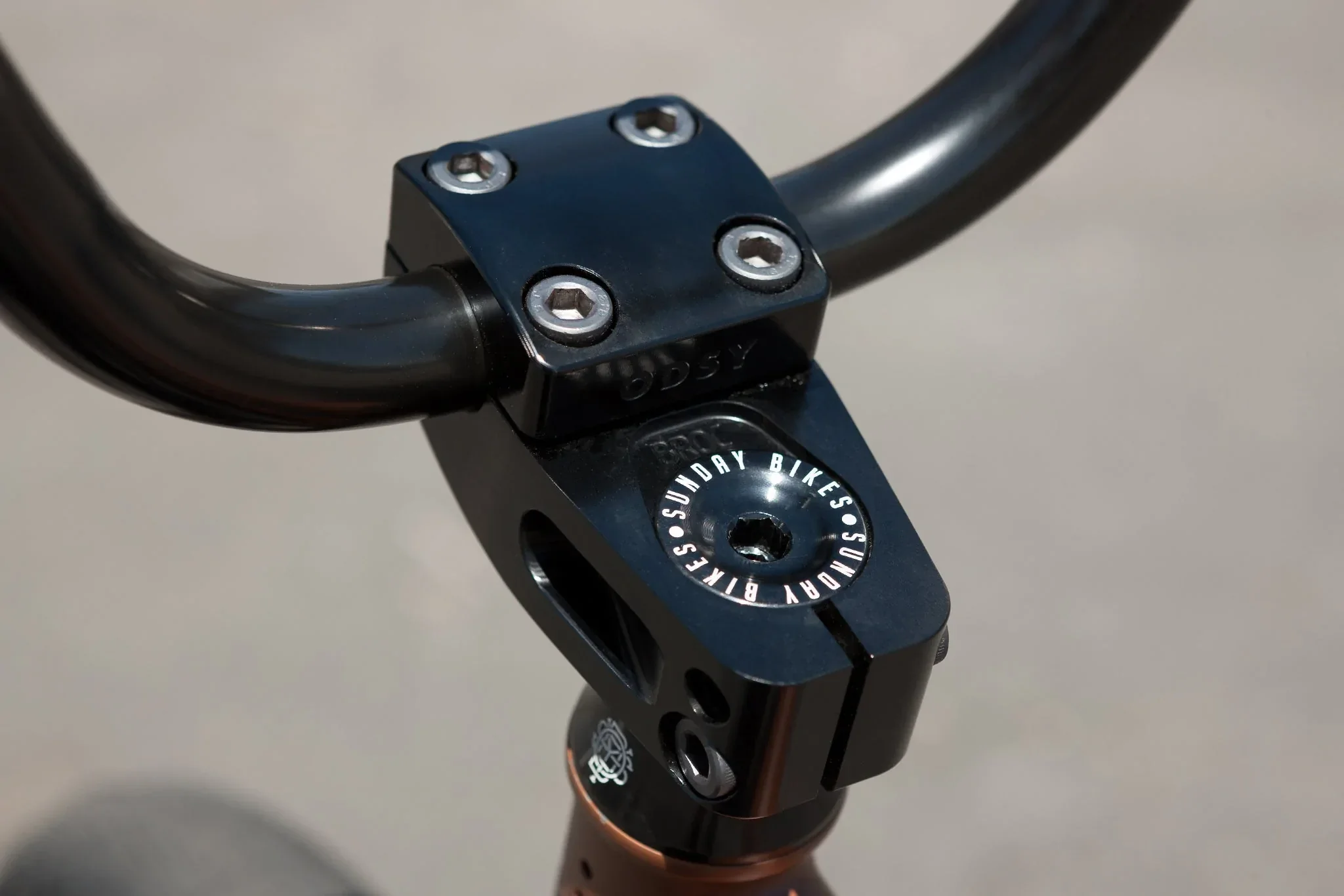

Stem: Odyssey BROC V2 Stem, 50mm

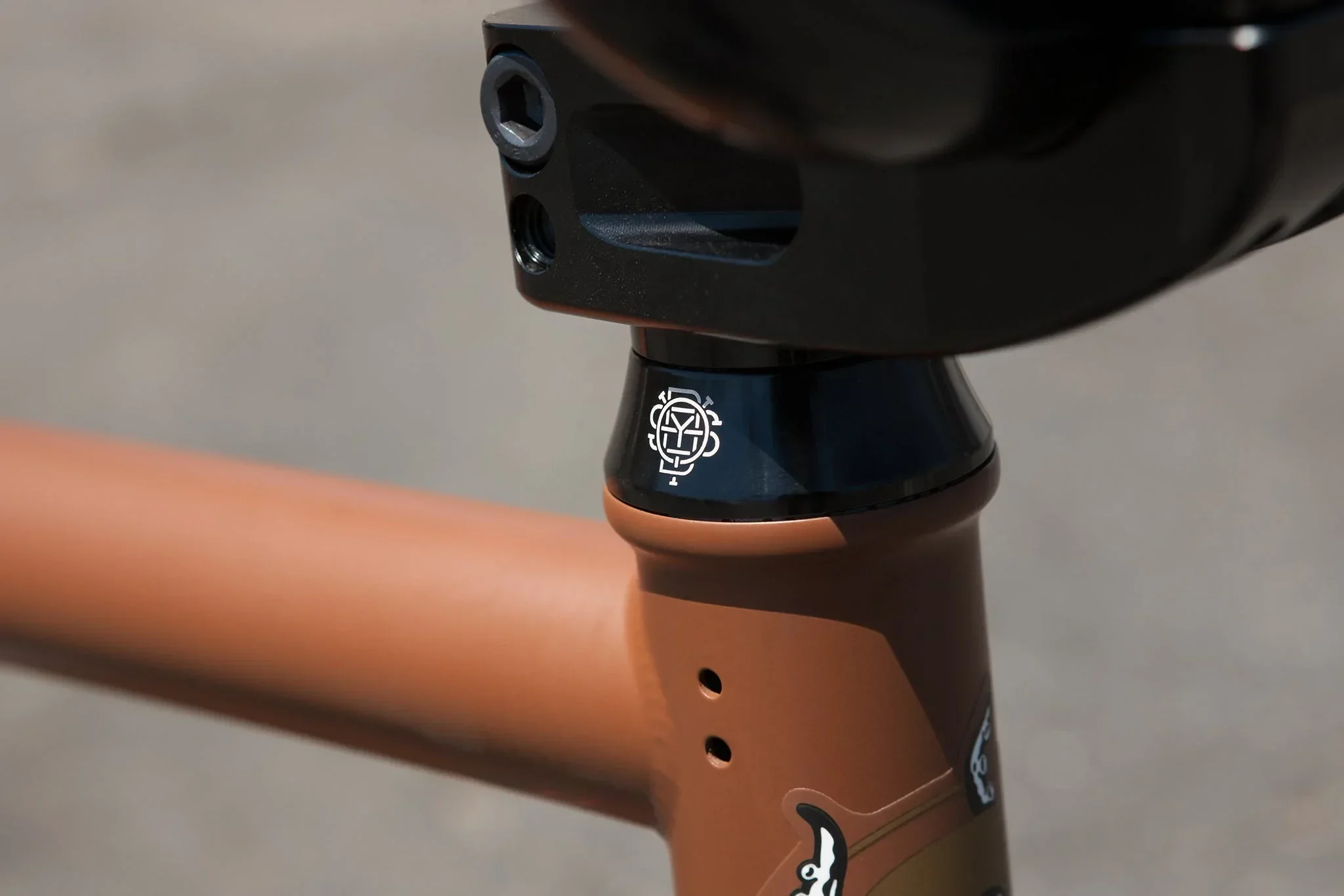

Headset: Odyssey Pro Conical, 1-1/8"
Headset Cap: Sunday aftermarket, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Linear Quik Slic

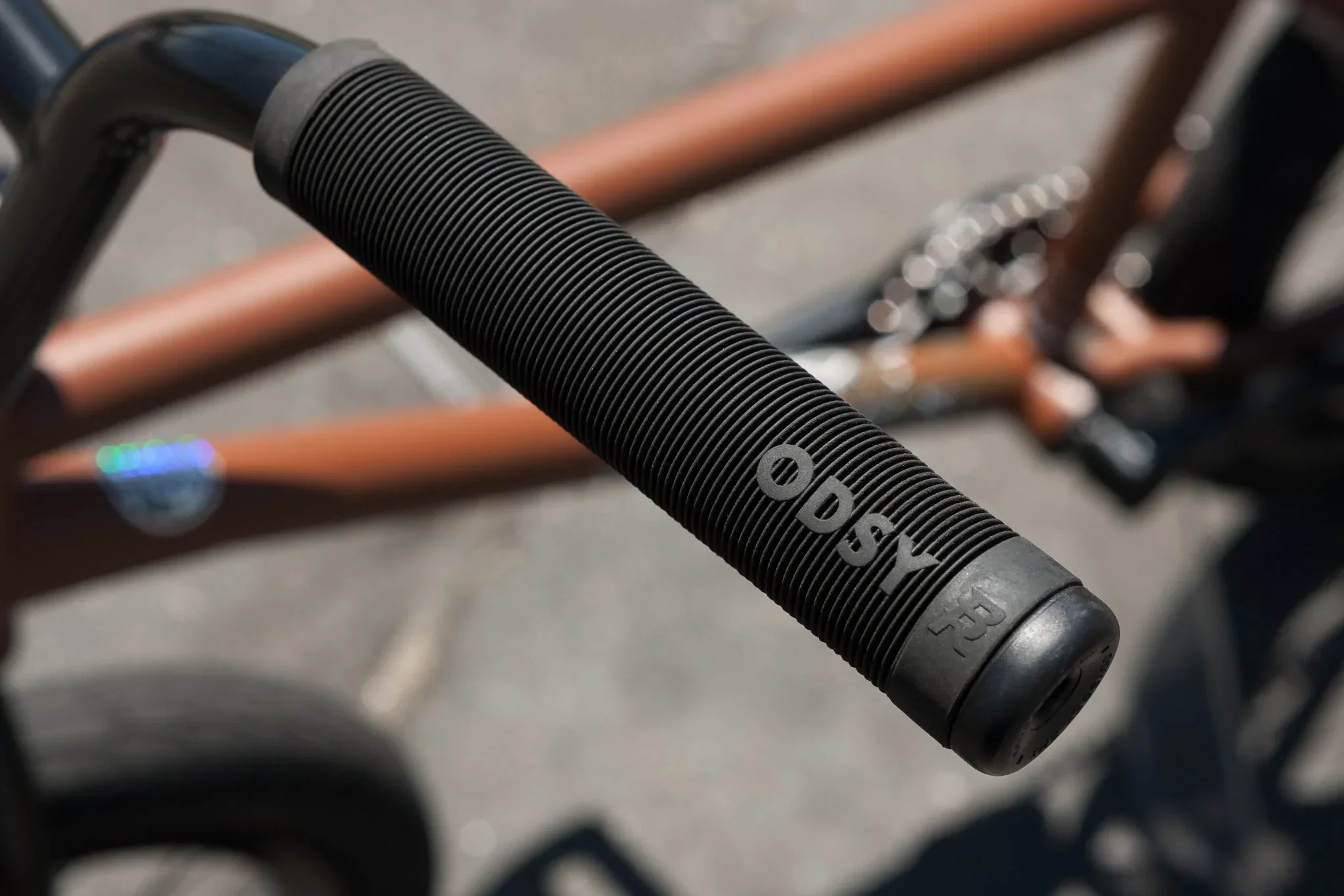

Grips: Odyssey Broc Raiford

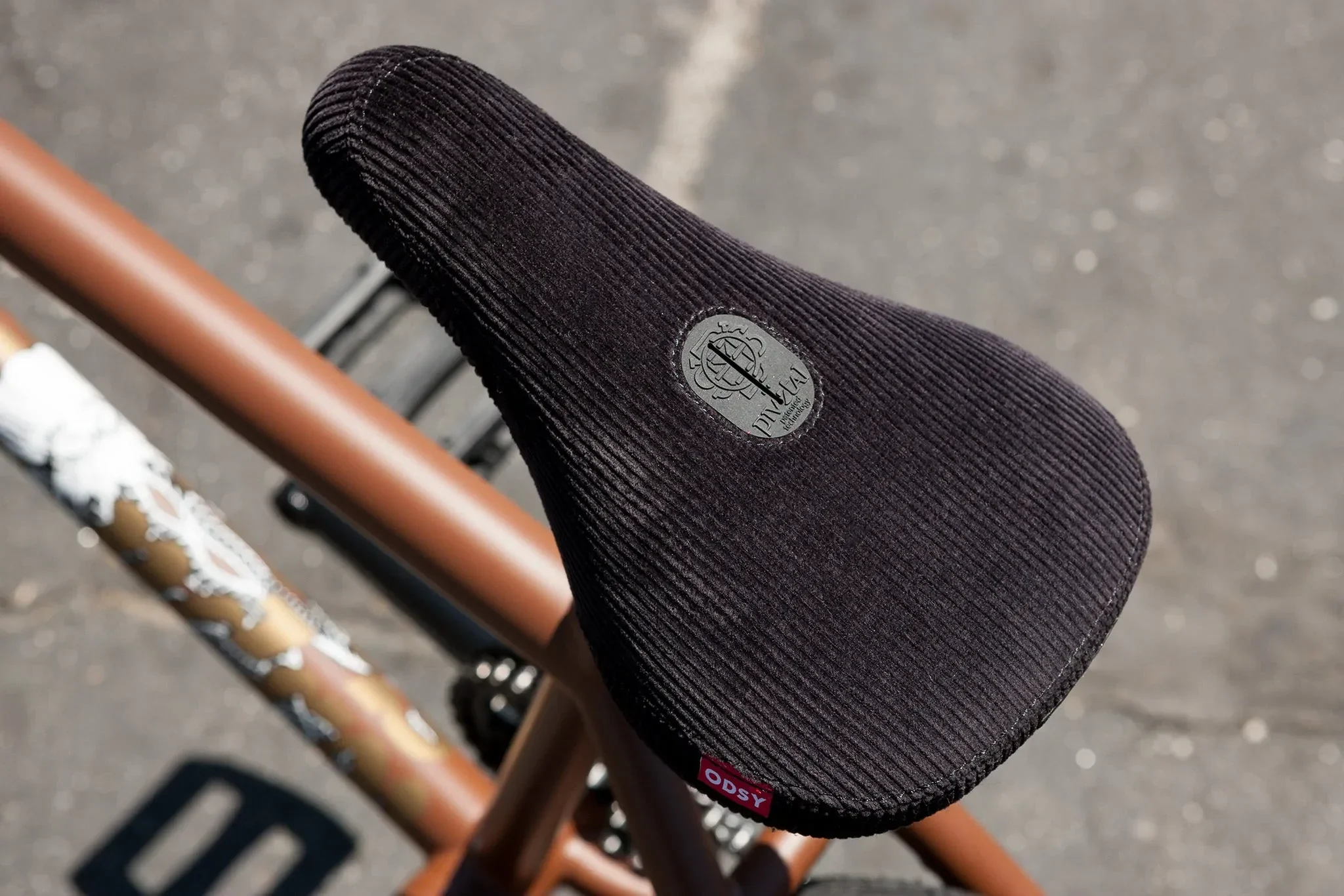

Seat: Odyssey Broc Raiford Signature, Pivotal
Seat Alternate: Odyssey Big Stitch, Pivotal
Seat post: Odyssey Pivotal
Seat Clamp: Integrated

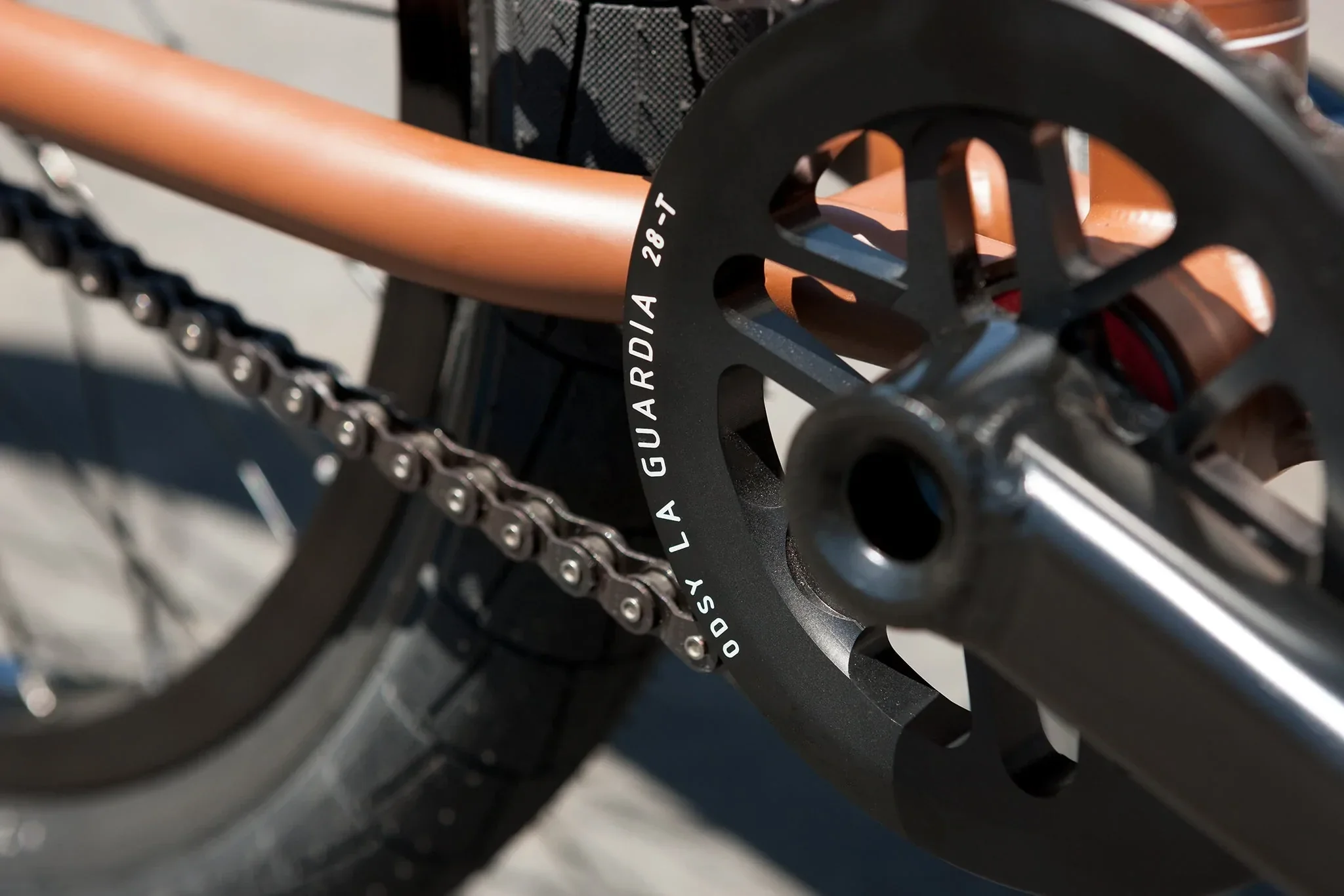

Sprocket: Odyssey La Guardia Sprocket, 28T
Cranks: Odyssey Thunderbolt, 170mm, 100% chromoly, 41-Thermal, LHD
BB Parts: Odyssey Sealed, Mid, 22mm

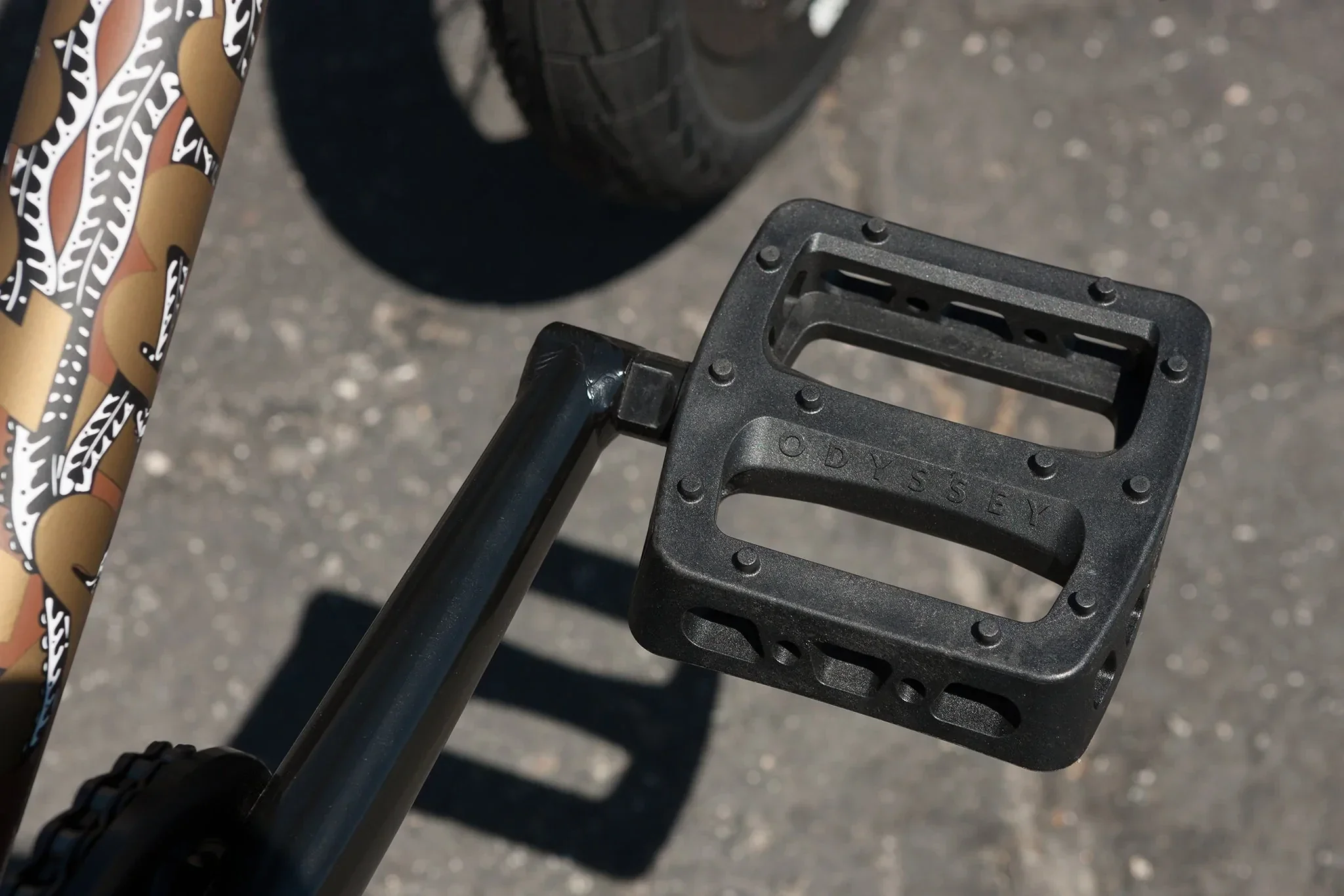

Pedals: Odyssey Twisted PC Pro

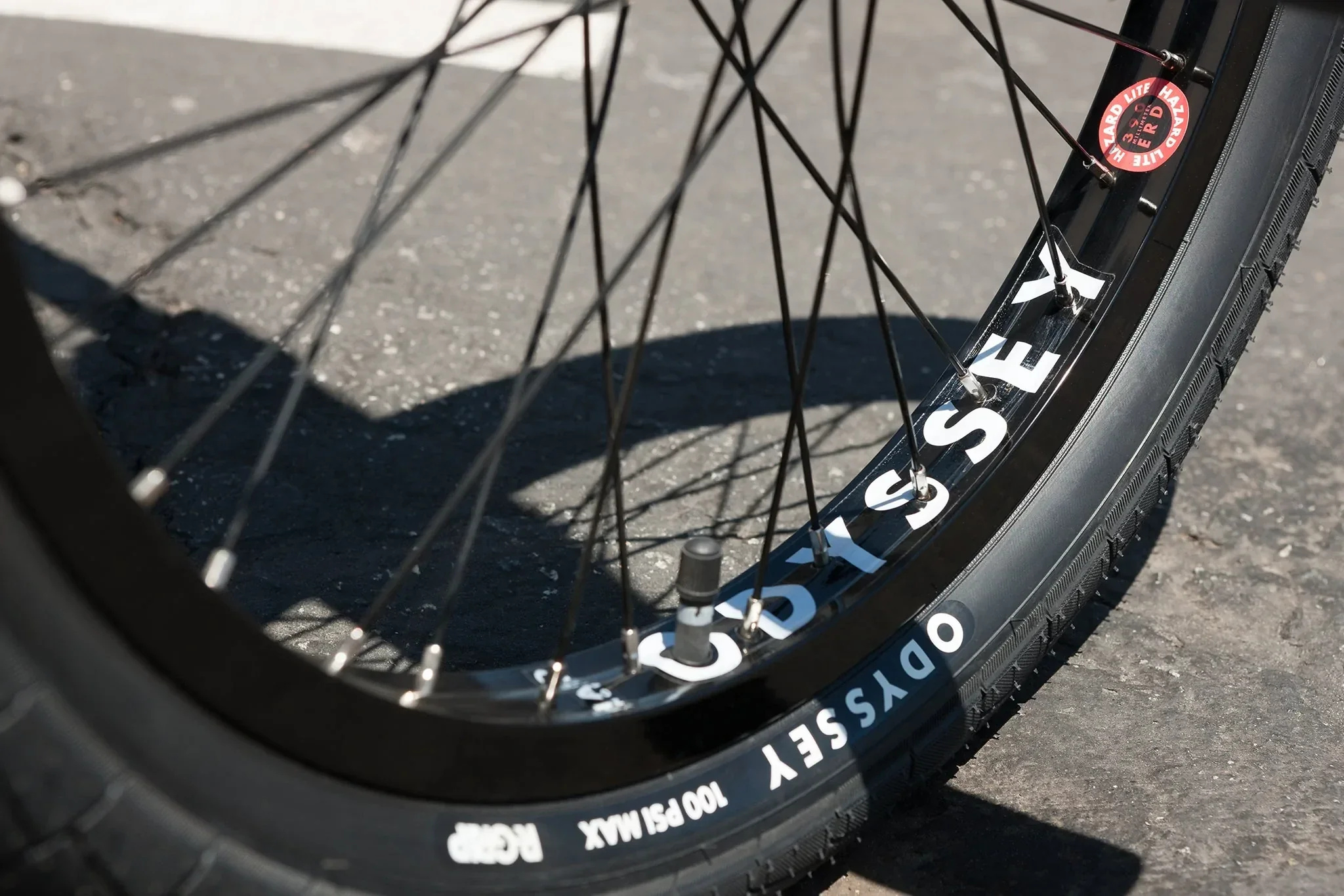

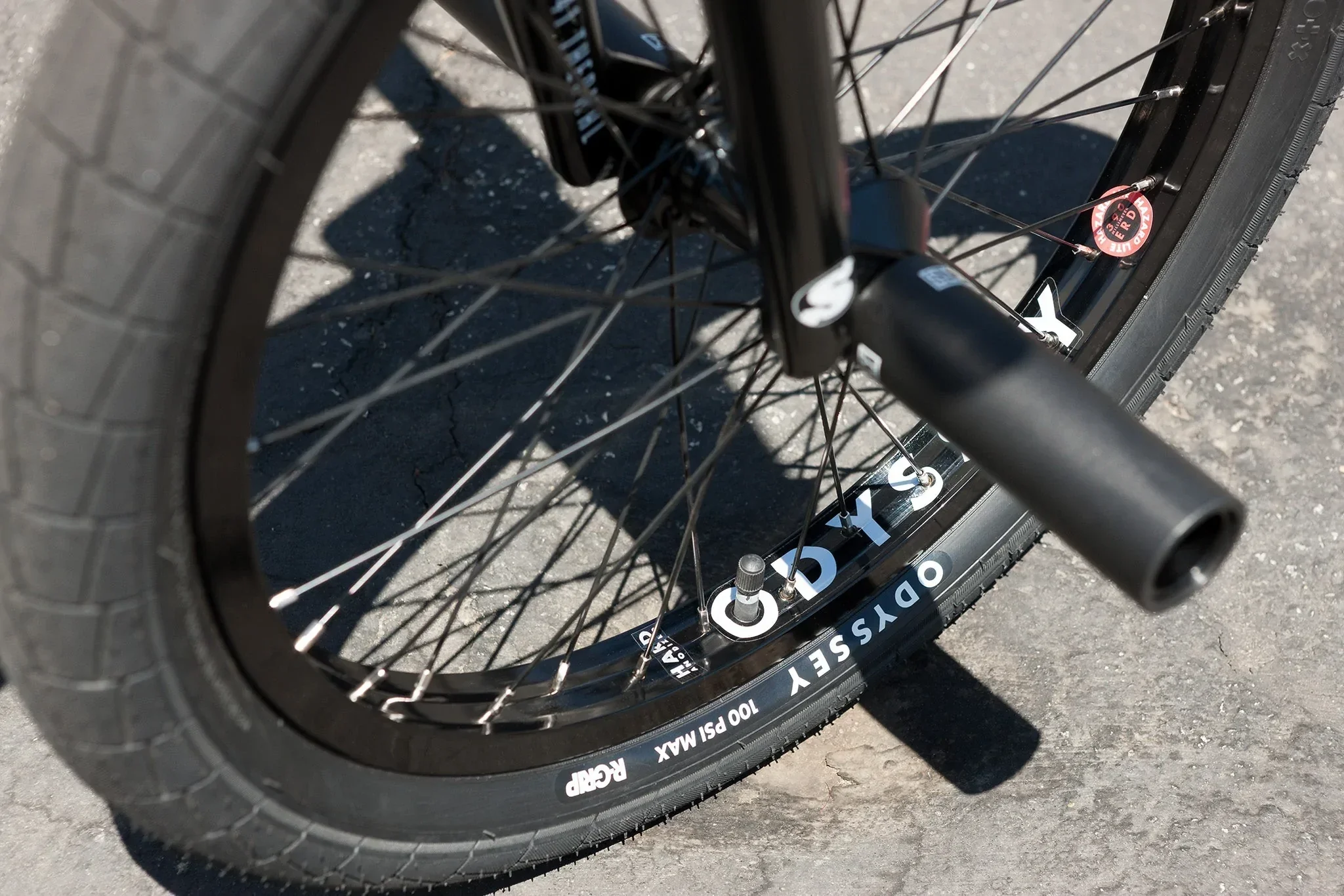

Rims: Odyssey Hazard Lite, 20", 36H

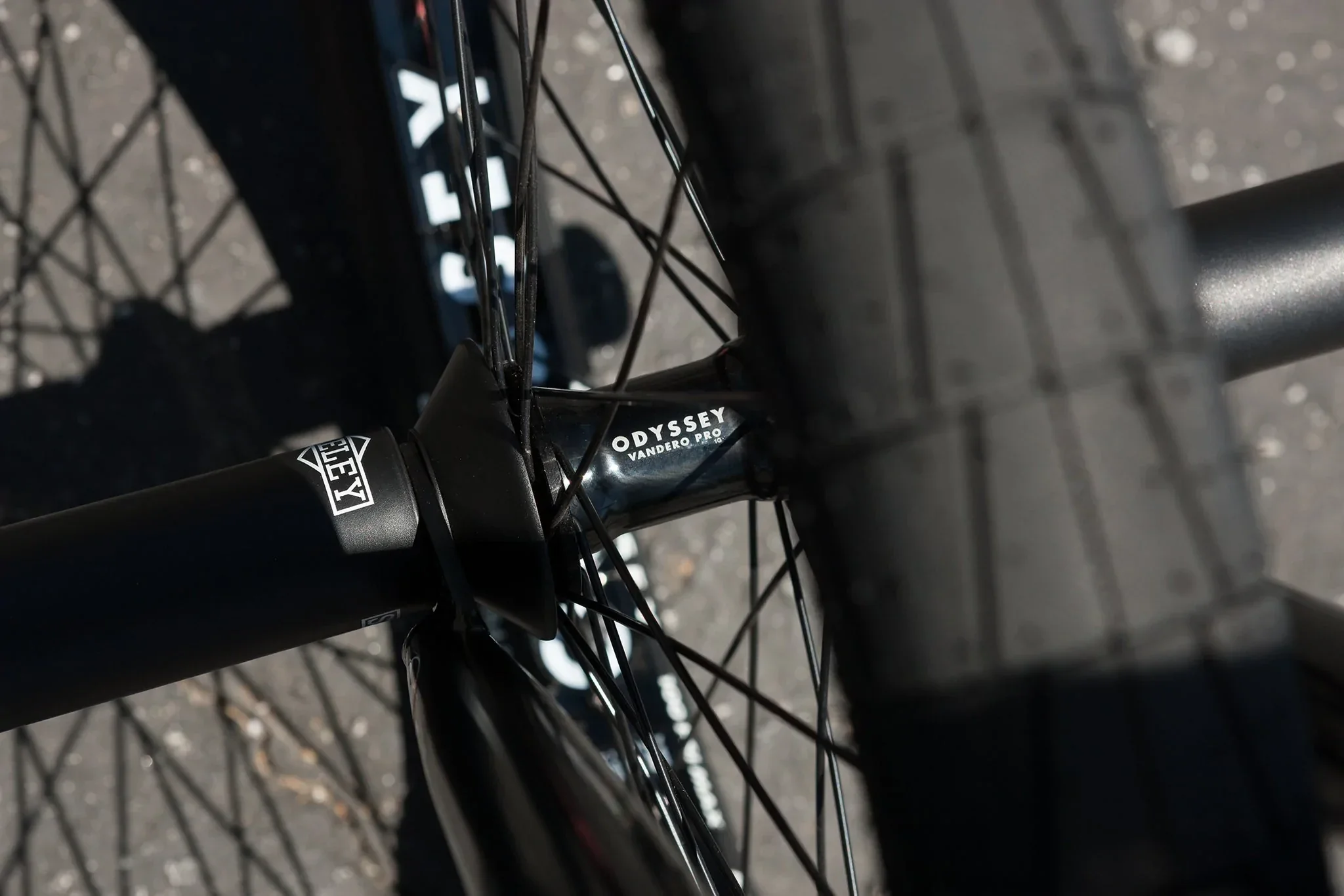

Front Hub: Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards

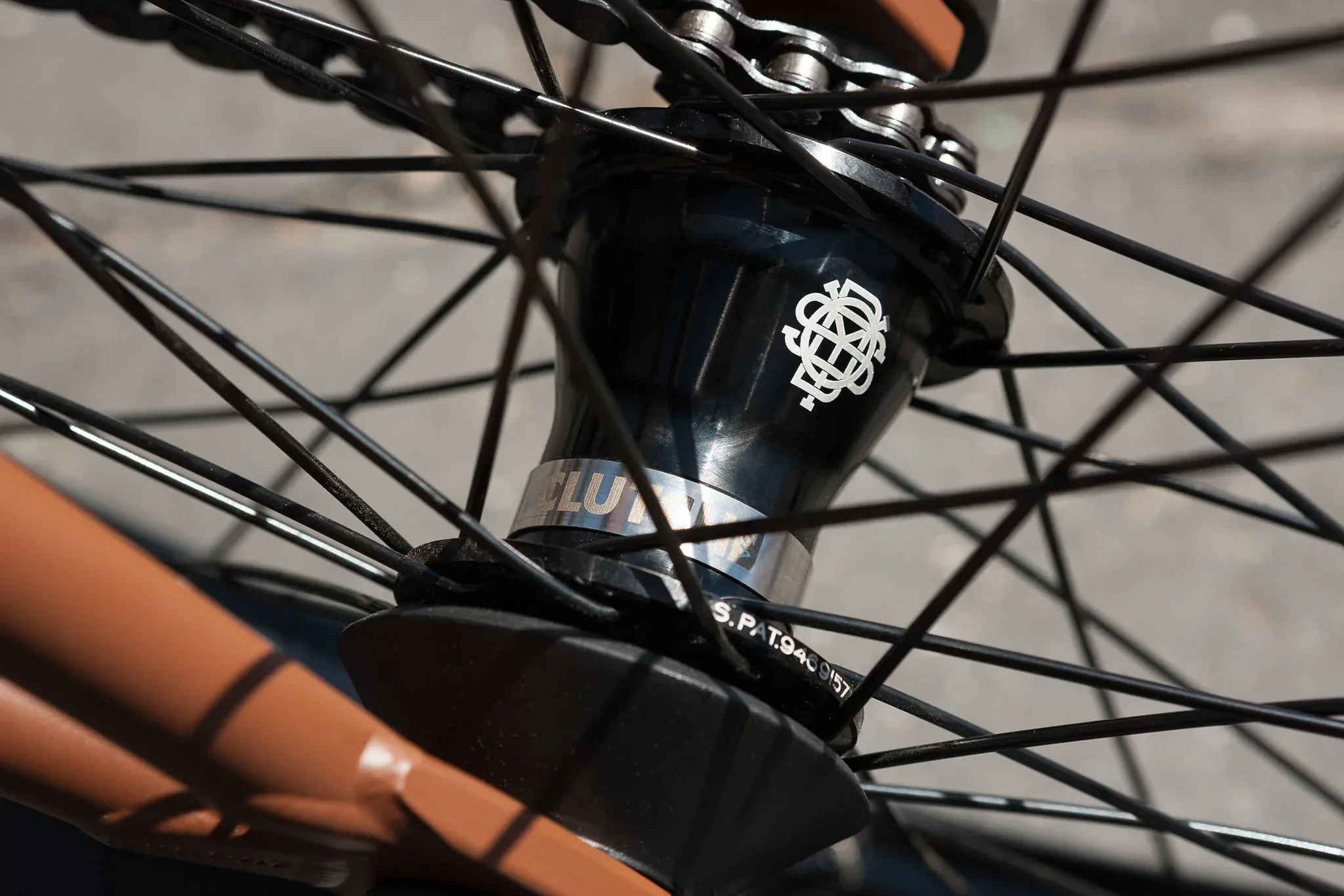

Rear Hub: Odyssey Clutch V2 freecoaster, 36H, 14mm female axle w/ 9T driver, RHD or LHD, non-drive side plastic guard
Spokes: 14g steel, black

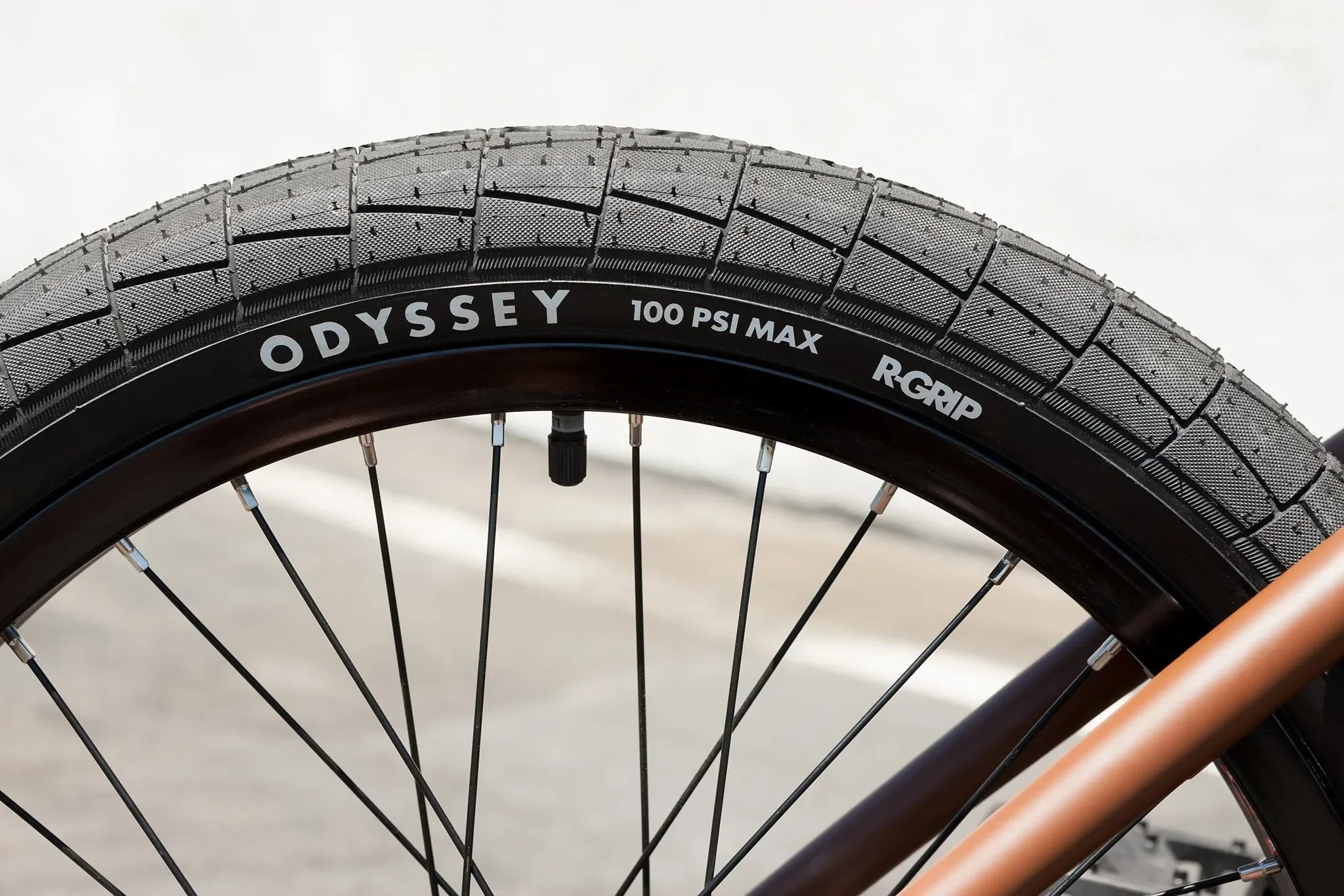

Tires: Odyssey Broc Tire, 20 x 2.4" (F & R)
Chain: Odyssey Bluebird Half-Link

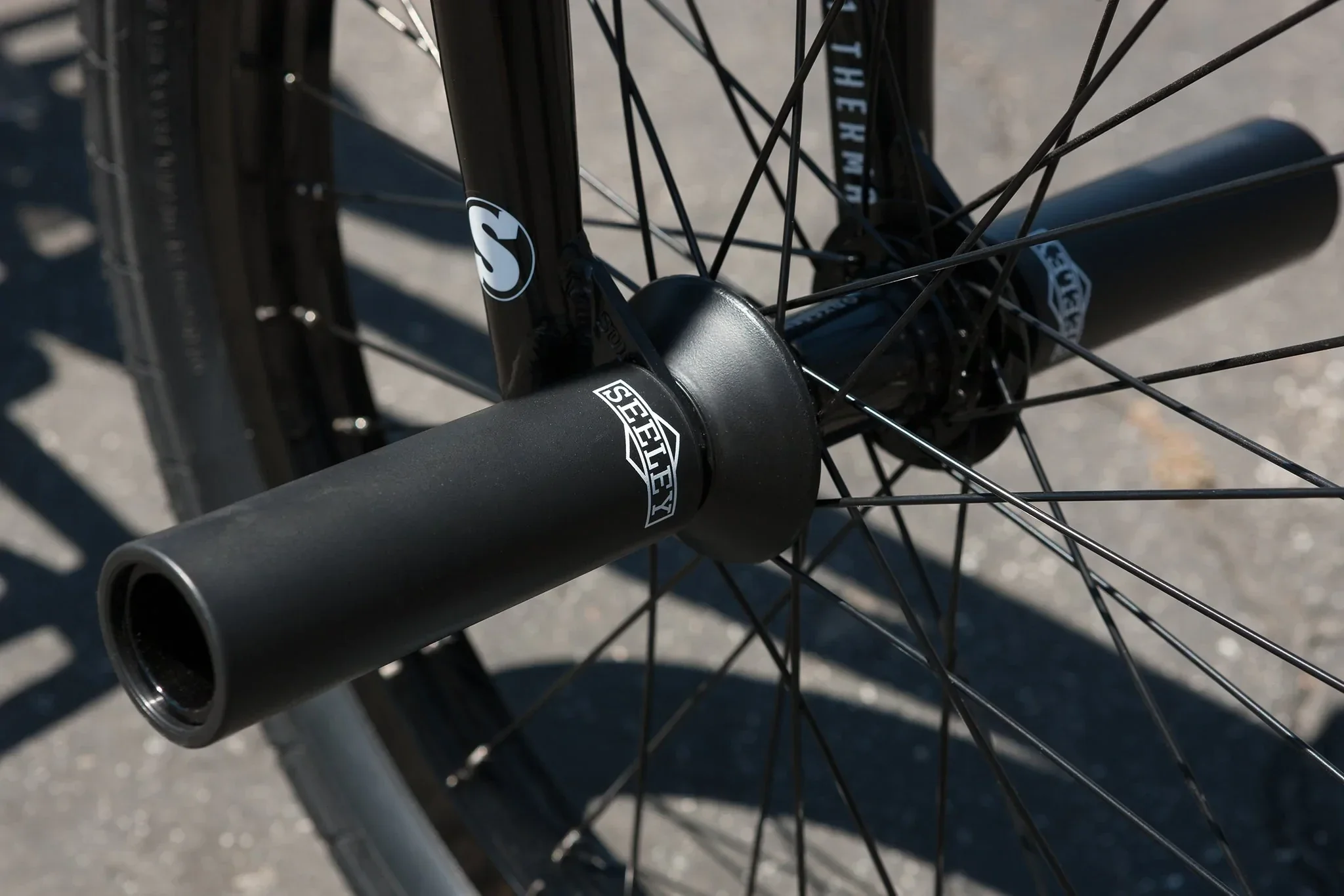

Pegs: Sunday Seeley Peg 4.75" (x4)
Approx. Weight: 24.97lbs (brakeless)
Frame Geometry
Top Tube Length: 21" (RHD), 21.25" (LHD)
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 13.25"-13.5”
Bottom Bracket Height: 11.75"
Standover: 9.25”
Handlebar Geometry
Rise: 9.8"
Width: 29"
Backsweep: 10°
Upsweep: 2°
