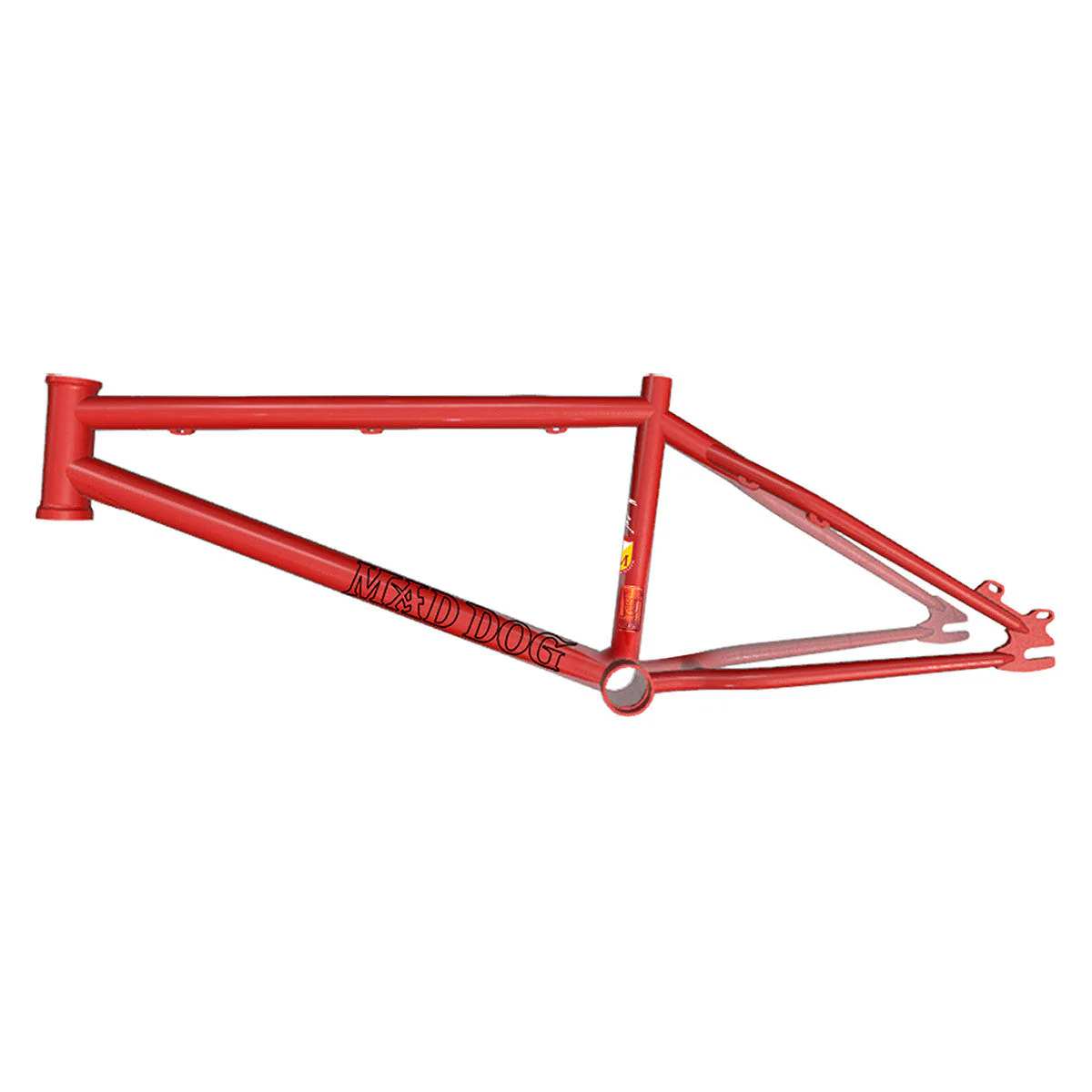

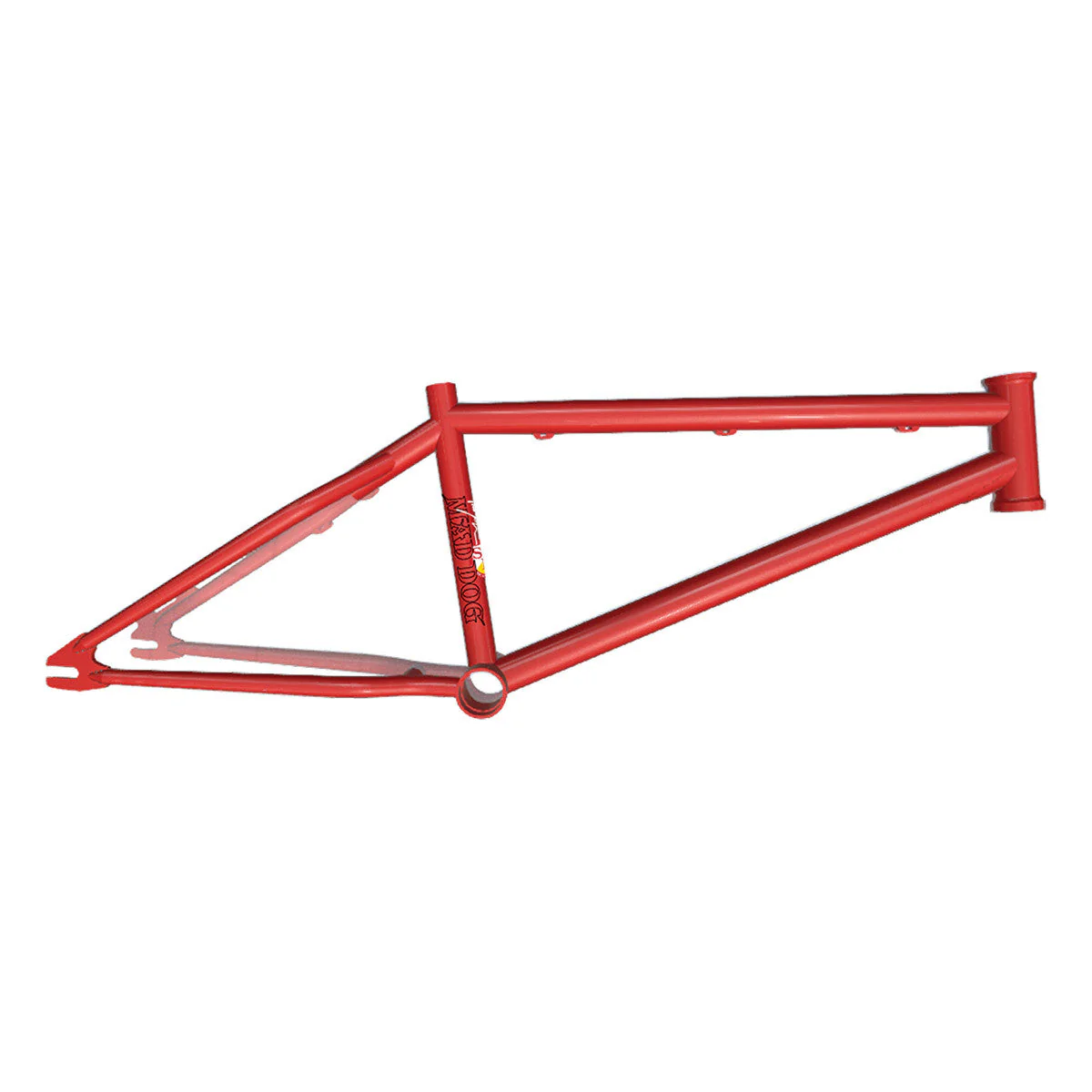

S&M Mad Dog Frame Challenger Red

S&M Mad Dog Frame Challenger Red

Throw a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light (sub 5lbs) and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, its designed for dudes who want to terrorize the trails and the track and claim their territory doing it.

Engraved Shield on Headtube. Engraved '87' on BB shell. MAD DOG-tag on seat-tube

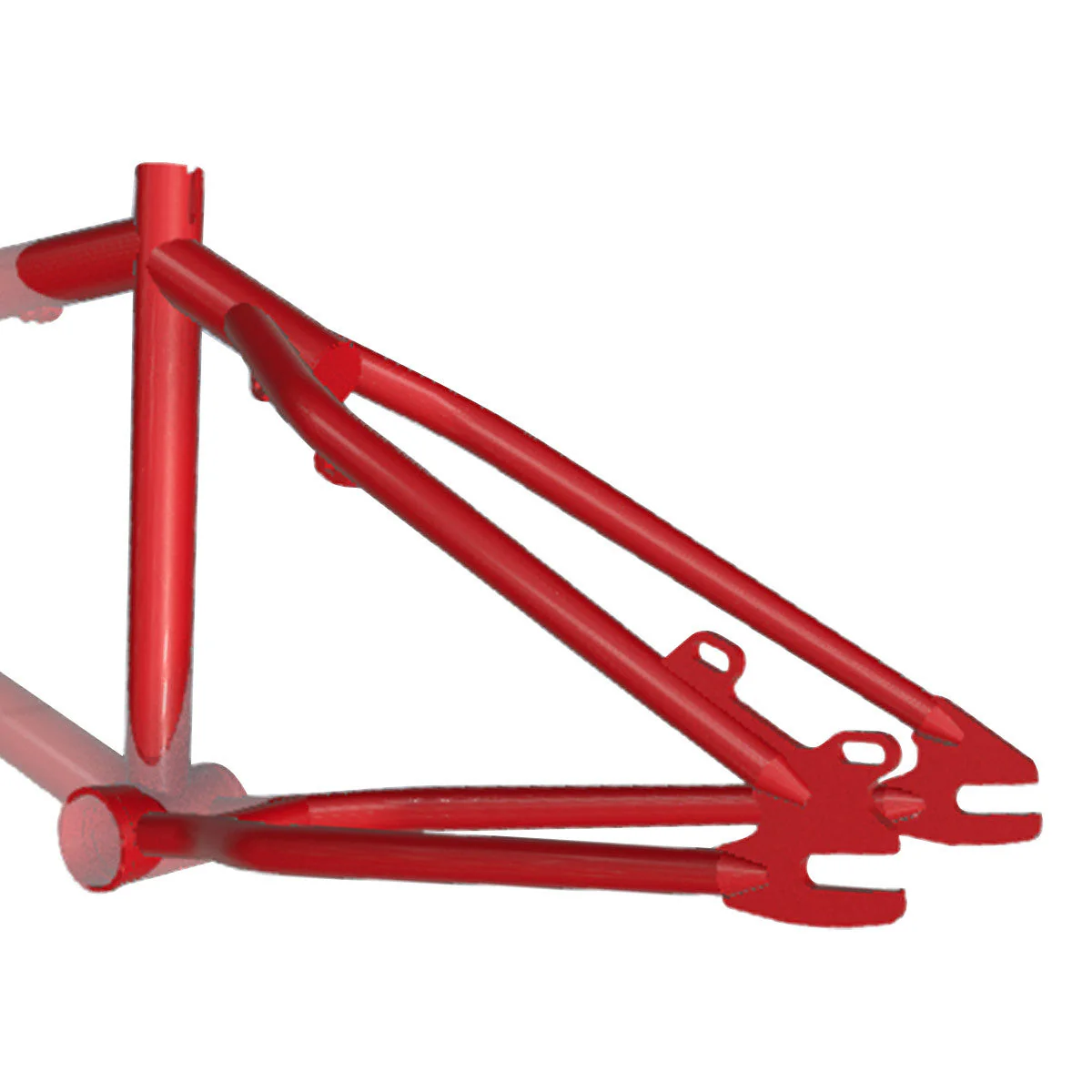

Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor, 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size with proper chain alignment is 39 tooth. Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm.

• TOP TUBE LENGTHS: 20.5" 20.75" 21" 21.125" 21.25" 21.5" 21.75" 22"
• REAR END LENGTH: 13.9"
• HEAD TUBE ANGLE: 74.25°
• STANDOVER HEIGHT: 10"
• B.B. HEIGHT: 11.6"
• SEAT TUBE ANGLE: 71°
• HEAD TUBE: 5" Tall Integrated Campy Style
• B.B. STYLE: Mid
• BRAKE MOUNTS: Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor
• DROPOUTS: 3/8"
• SEAT POST SIZE: 1" / 25.4mm
• WEIGHT: 4.9 lbs

For a sneak peak and to hear a little more from the man himself check out the latest Factory Friday video (skip to 3:36)
