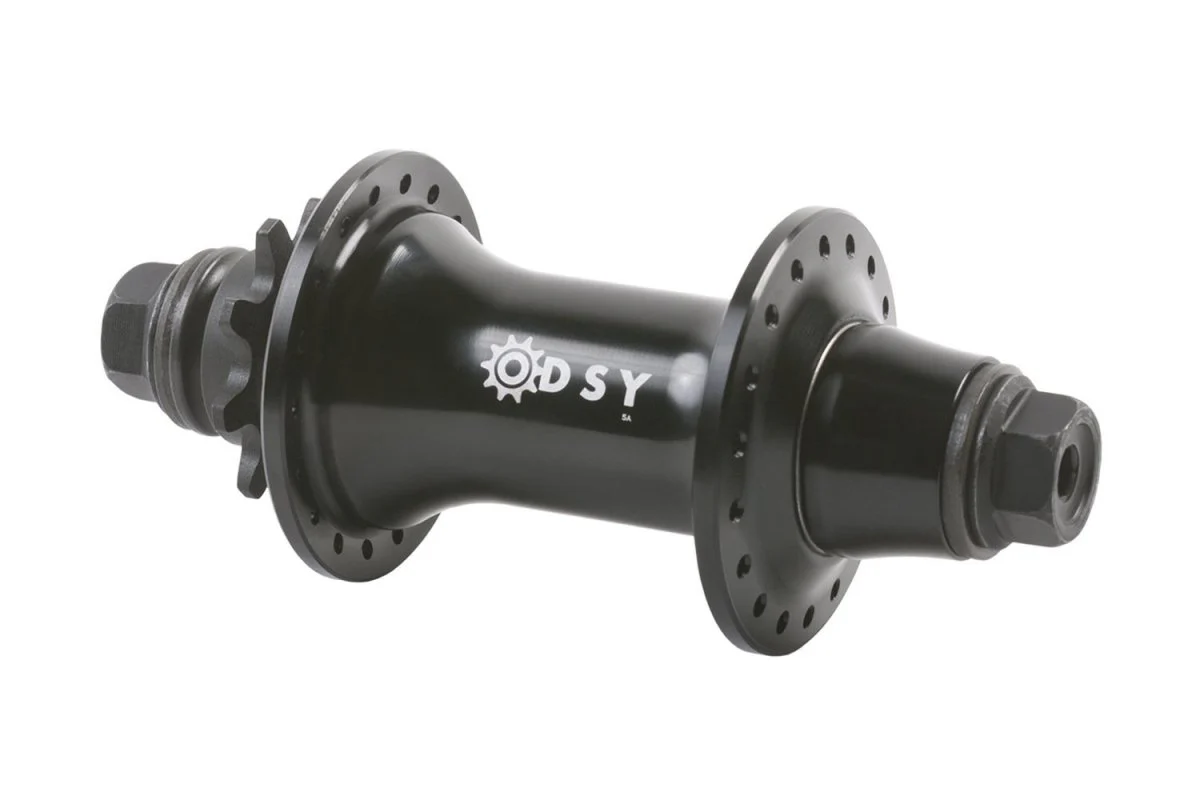

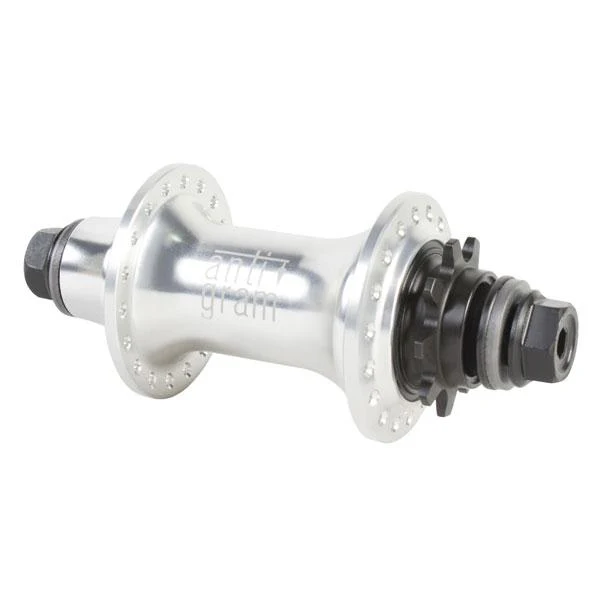

Odyssey Antigram V1 Cassette Hub
The Antigram is a 36-H rear hub that is strong, light and reasonably priced with in-bound axle bolts that is both RHD/LHD switchable and guard compatible.
Specs
- 2014-T6 forged aluminum hub shell
- 6903RS sealed cartridge ball bearings
- 9-T driver with 3-Pawn independent springs design and precision caged needle bearings
- RHD/LHD switchable
- Click HERE to download the full tech sheet.
Axle Options
- 14mm, 4130 chromoly axle bolts w/17mm 4130 chromoly female axle
- 3/8", 4130 chromoly axle bolts w/17mm 7075-T6 aluminum female axle
Weights
- With 14mm Chromoly Axle: 14.5oz / 411g
- With 3/8" Aluminum Axle: 12.5oz / 354g
Guard Options
- 7075-T6 Aluminum Design (Available Now)
- Proprietary Plastic Design (Available Soon)
Measurements
- Drive Side Effective Flange Diameter: 49mm
- Non-Drive Side Effective Flange Diameter: 49mm
- Drive Side Flange to Center Distance: 30mm
- Non-Drive Side Flange to Center Distance: 30mm
Select Colour
From $59.50
Original: $170.00
-65%Odyssey Antigram V1 Cassette Hub—
$170.00
$59.50
Description
The Antigram is a 36-H rear hub that is strong, light and reasonably priced with in-bound axle bolts that is both RHD/LHD switchable and guard compatible.
Specs
- 2014-T6 forged aluminum hub shell
- 6903RS sealed cartridge ball bearings
- 9-T driver with 3-Pawn independent springs design and precision caged needle bearings
- RHD/LHD switchable
- Click HERE to download the full tech sheet.
Axle Options
- 14mm, 4130 chromoly axle bolts w/17mm 4130 chromoly female axle
- 3/8", 4130 chromoly axle bolts w/17mm 7075-T6 aluminum female axle
Weights
- With 14mm Chromoly Axle: 14.5oz / 411g
- With 3/8" Aluminum Axle: 12.5oz / 354g
Guard Options
- 7075-T6 Aluminum Design (Available Now)
- Proprietary Plastic Design (Available Soon)
Measurements
- Drive Side Effective Flange Diameter: 49mm
- Non-Drive Side Effective Flange Diameter: 49mm
- Drive Side Flange to Center Distance: 30mm
- Non-Drive Side Flange to Center Distance: 30mm
